RRF

Rotate right of four bits

Shift & Rotate

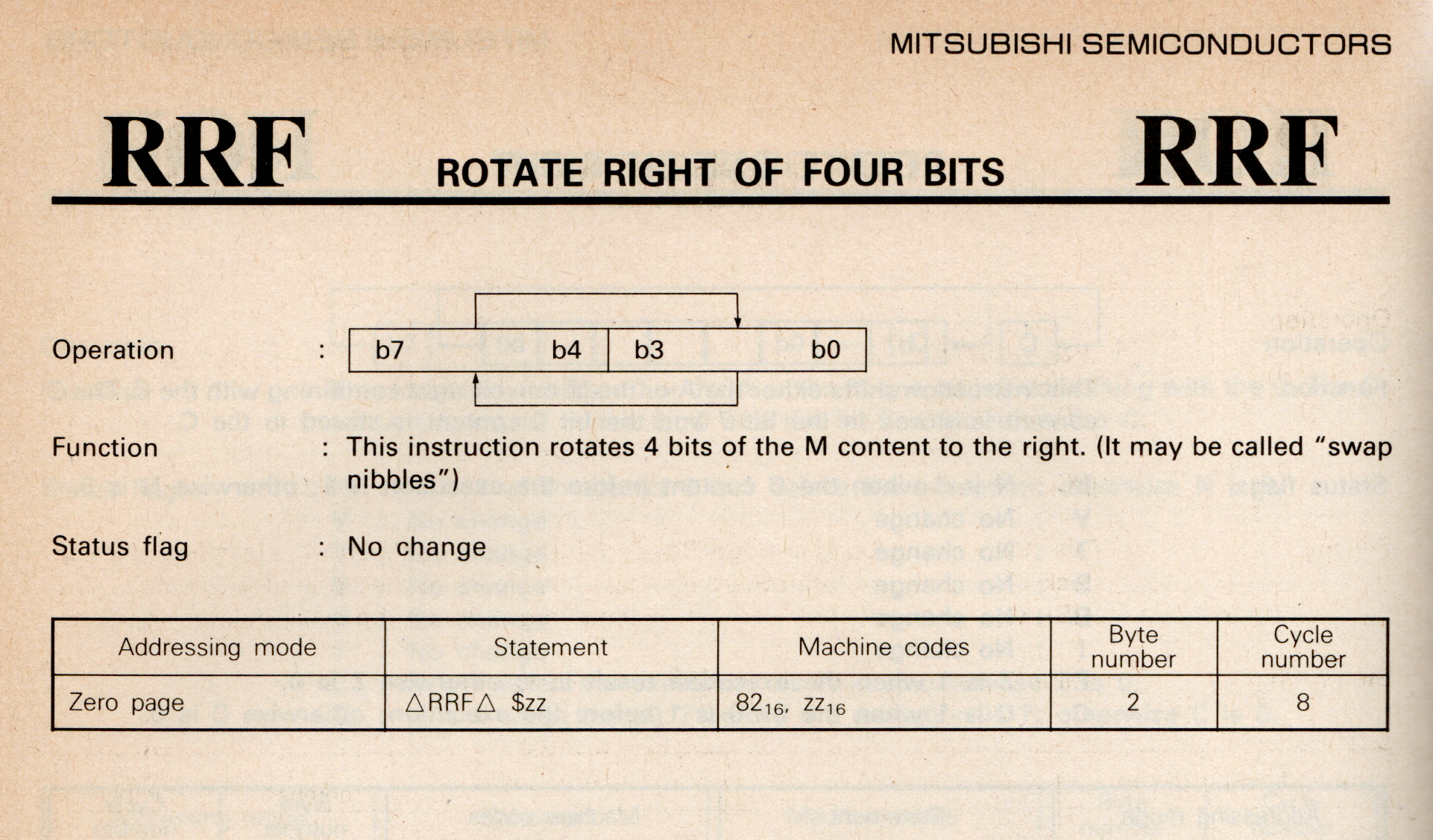

RRF instruction reference scan

Scanned from original Mitsubishi M50734 Software Manual. Click to enlarge.

Click anywhere or press Esc to close
